● Features

   1: Low resistance value and low inductance , high precision

     2: Open frame structure

     3: Max Power can be up to 5W

     4: Temperature coefficient ≤ 50 PPM

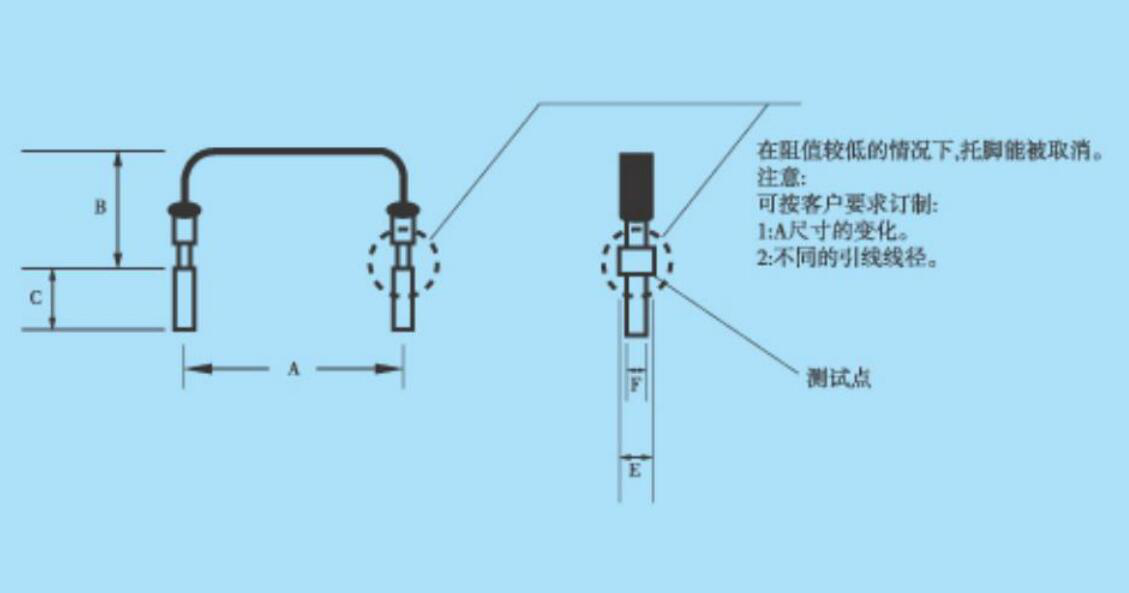

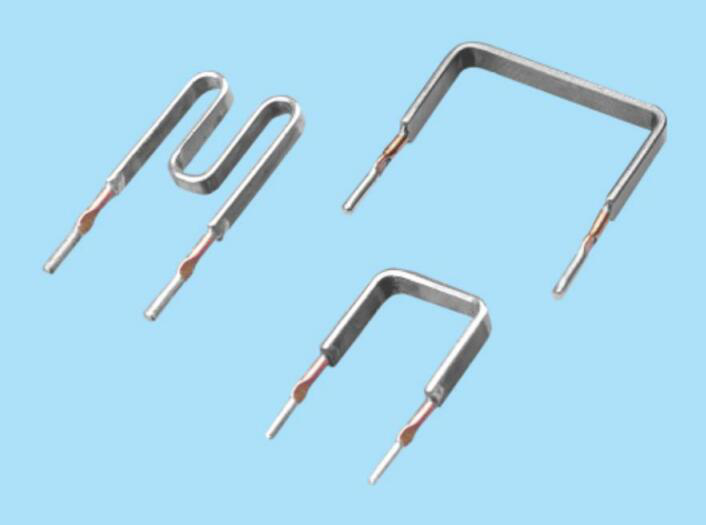

     ● Construction Drawing (  OAR Type )



Type	Power	Resistance Range	A	B	C	E	F
OAR-1	1W	5mΩ-50mΩ	10 mm	10 mm	3.5mm	1.6mm	1.0mm
OAR-2	2W	5mΩ-50mΩ	15 mm	15 mm	3.5mm	1.6mm	1.0mm
OAR-3	3W	5mΩ-50mΩ	20 mm	20 mm	3.5mm	1.6mm	1.0mm
OAR-5	5W	5mΩ-100mΩ	20 mm	20 mm	3.5mm	1.6mm	1.0mm

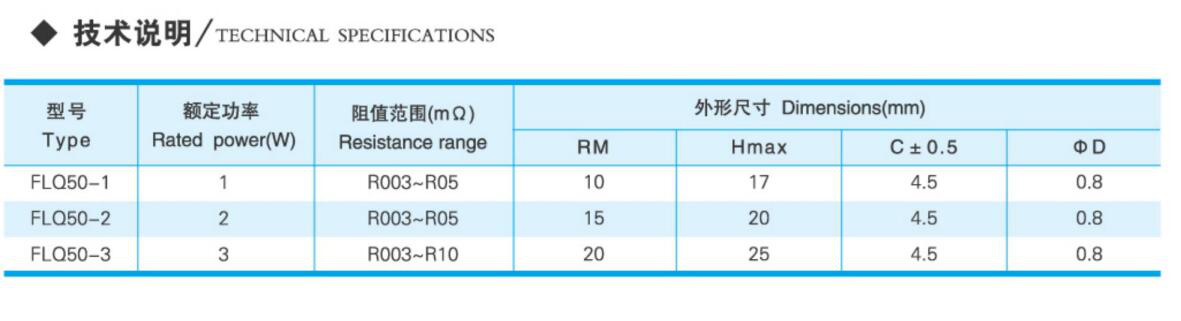

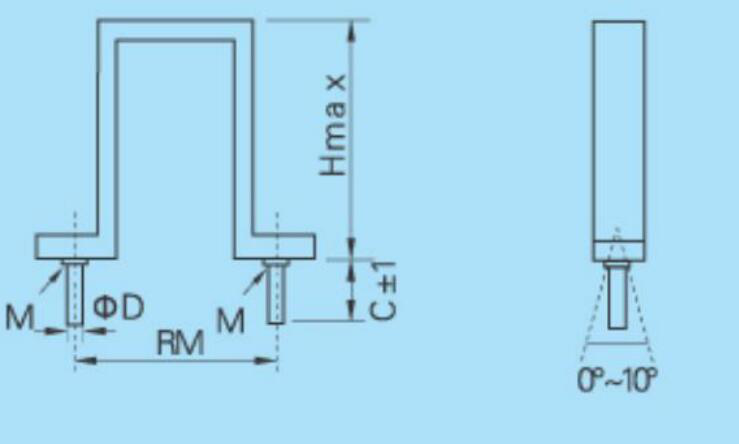

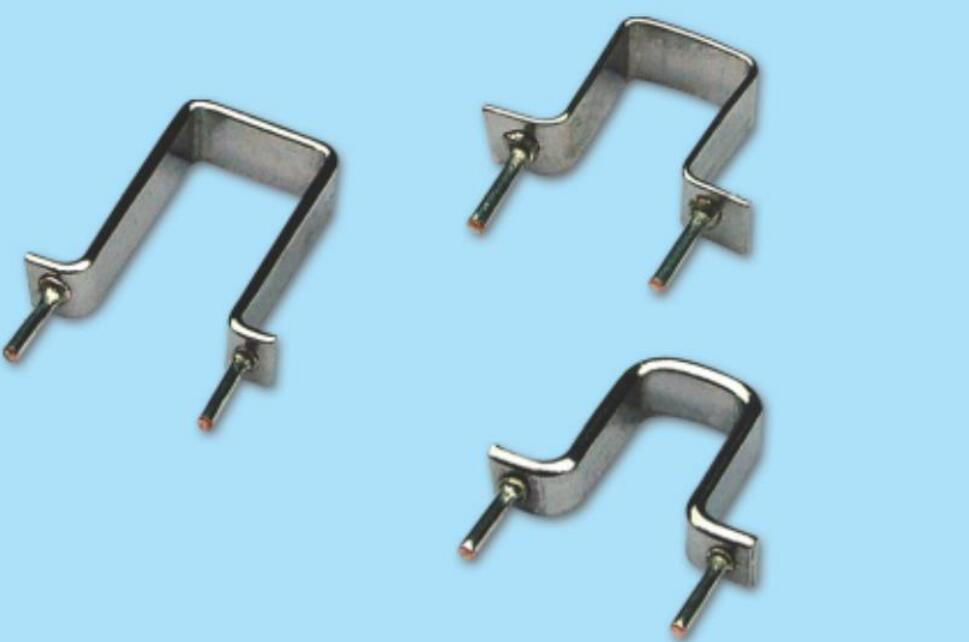

● Construction Drawing ( FLQ-50 Type )

 Note:  M is the measure point , RM: 5-25mm , increased as the unit of 5mm

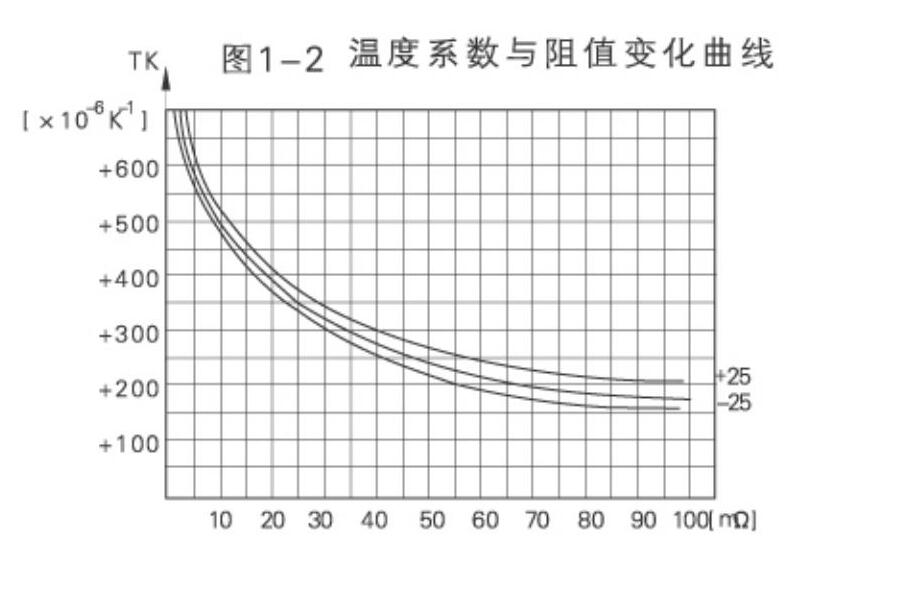

● Resistance value and Temperature Coefficient curve

● Any special requirement for dimension and other parameters please leave message to us
