Features

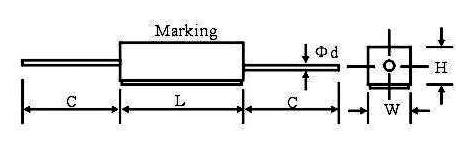

▇ Drawing
Part No. | Dimension ( mm ) | Resistance Range ( Ω） | |||||
2W 3W 5W 7W 10W 15W 20W-25W | W±1 | H±1 | L±1.5 | C±1 | d±0.05 | Wire wound Core | MO Core |
7 6 10 10 10 12.5 14 | 7 8 9 9 9 11.5 13.5 | 18 22 22 35 48 48 63 | 25 28 28 28 28 28 28 | 0.75 0.75 0.78 0.8 0.8 0.8 0.78 | 0.1-270 0.1-1K 0.1-1K 0.1-1K 0.1-1K 0.1-1K 0.1-1K | 271-33K 1.1K-47K 1.1K-68K 1.1K-68K 1.1K-150K 1.1K-150K 1.1K-150K | |
Power (w) | 2W | 3W | 5W | 7W | 10W |
Max Working Voltage | 150V | 350V | 1000V | 500V | 750V |
Dielectric Withstanding Voltage | 1000V (AC) | 1000V (AC) | 1000V (AC) | 1000V (AC) | 1000V (AC) |
Resistance Tolerance | J±5% | J±5% | J±5% | J±5% | J±5% |
▇ Rated Power Derating Curve
