Features

Product Details


A. High Change heat ceramic core

B. High stability electric conduction film

C. Iron Cap

D. Epoxy resin coating

E. Color ring

F. Tinned copper lead wire or CP ( Iron) wire

● Specifications & Dimensions

Power	Resistance Range ( Ω）	Dimension ( mm)
Power	Resistance Range ( Ω）	L±1	D±0.5	d±0.05	Max Working Voltage	Max Overload Voltage	Max Pulse Voltage
1/8W	0-22M	3.5	1.7	0.41	200 V	400V	500V
1/4WS	0-22M	3.5	1.7	0.41	200V	400V	500V
1/4W	0-22M	6.0	2.3	0.45	250V	500V	750V
1/4W	0-22M	6.0	2.3	0.52	250V	500V	750V
1/2WS	0-22M	6.0	2.3	0.45	250V	500V	750V
1/2WS	0-22M	6.0	2.3	0.52	250V	500V	750V
1/2W	0.1-22M	9.0	3.2	0.58	350V	700V	1000V
1WS	0.1-22M	9.0	3.2	0.58	350V	700V	1000V
1W	0.1-22M	11.0	4.5	0.78	500V	1000V	1000V
2WS	0.1-22M	11.0	4.5	0.78	500V	1000V	1000V
2W	0.1-22M	15.0	5.0	0.78	500V	1000V	1000V
3WS	0.1-22M	15.0	5.0	0.78	500V	1000V	1000V
3W	0.1-22M	17	6.0	0.78	700V	1200V	1200V
5WS	0.1-22M	17	6.0	0.78	700V	1200V	1200V
5W	0.1-22M	24	8.0	0.78	750V	1200V	1200V

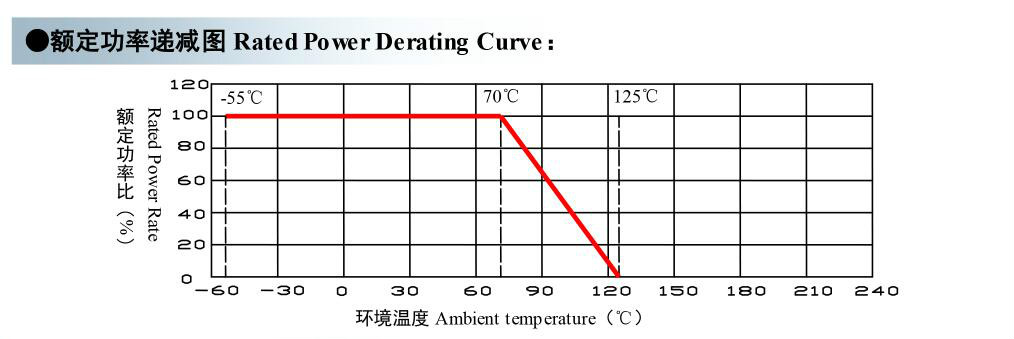

● Rated Power Derating Curve
