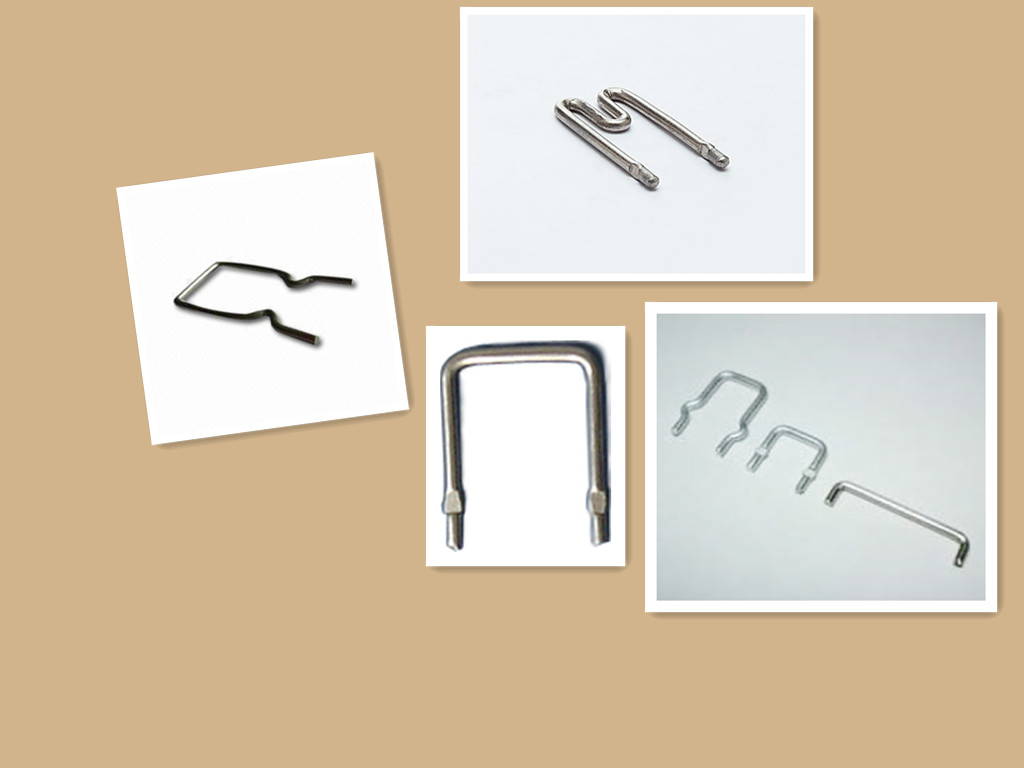

1. This resistor of FLQ53 series is made of precision alloy board, applied as current limited, current balance or sampling sense in power supplier, takes on the capability of high stability and high overload, and the function of easily welding and non inductance as well.

2. The operating temperature is -55-85℃ .

3. Please contact us for the requirement about the dimensions of length , diameter, shape  and width , if you can provide the drawing will be much more preferred .

4. The Max power can be up to 5W .

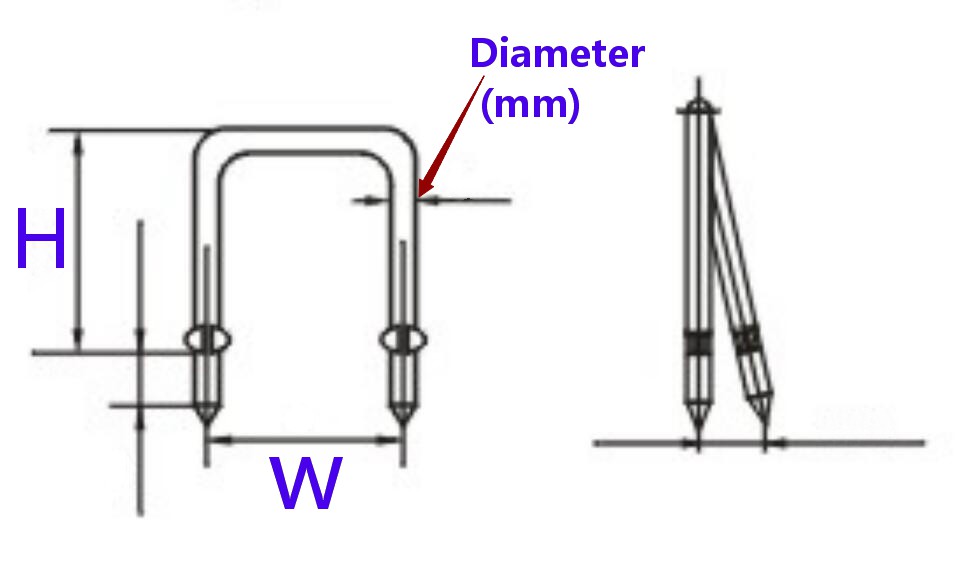

5. Construction Drawing :

Technical Specifications  技术规格
Type	Diameter (mm)	Rated   Electric  Current   （A）	Resistance Range ( mΩ）	Tolerance	T.C (PPM)
FLQ53-05	0.5	2.5	20~50	±3% ±5% ±10%	50-100    ( 10℃）
FLQ53-06	0.6	3.0	20~50
FLQ53-07	0.7	4.0	20~50
FLQ53-08	0.8	4.5	20~50
FLQ53-09	0.9	5.0	10~50
FLQ53-10	1.0	5.5	10~30
FLQ53-11	1.1	6.0	5~20
FLQ53-12	1.2	7.0	5~20
FLQ53-13	1.3	7.5	5~20
FLQ53-14	1.4	8.0	5~20
FLQ53-15	1.5	9.0	5~20
FLQ53-16	1.6	9.5	5~15
FLQ53-18	1.8	11	3~10
FLQ53-20	2.0	12	2~8
FLQ53-23	2.3	14	2~8
FLQ53-25	2.5	17	2~5
FLQ53-29	2.9	21	2~5
