High Voltage Resistors
Flat Type
● Features
■ Thick filming resulted in high surge -resist & stability
■ Operating ambient temperature ：-55℃~ 125℃
■ High resistance value , working voltage and low T.C.R
■ Resistance tolerance： ±5%、±10%
■ High frequency performance

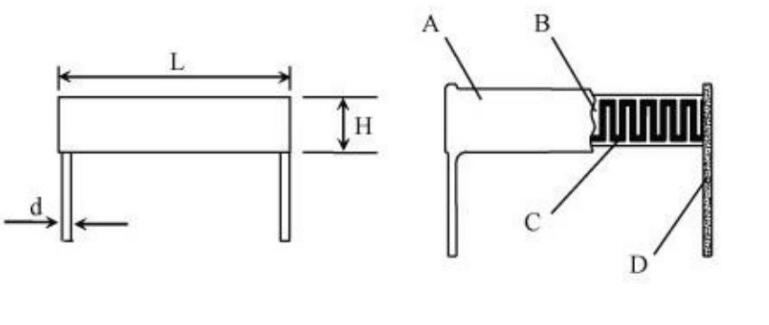

A. Protective coating
B. Ceramic Core
C. Glazed resistive film
D. Tinned Copper lead wire

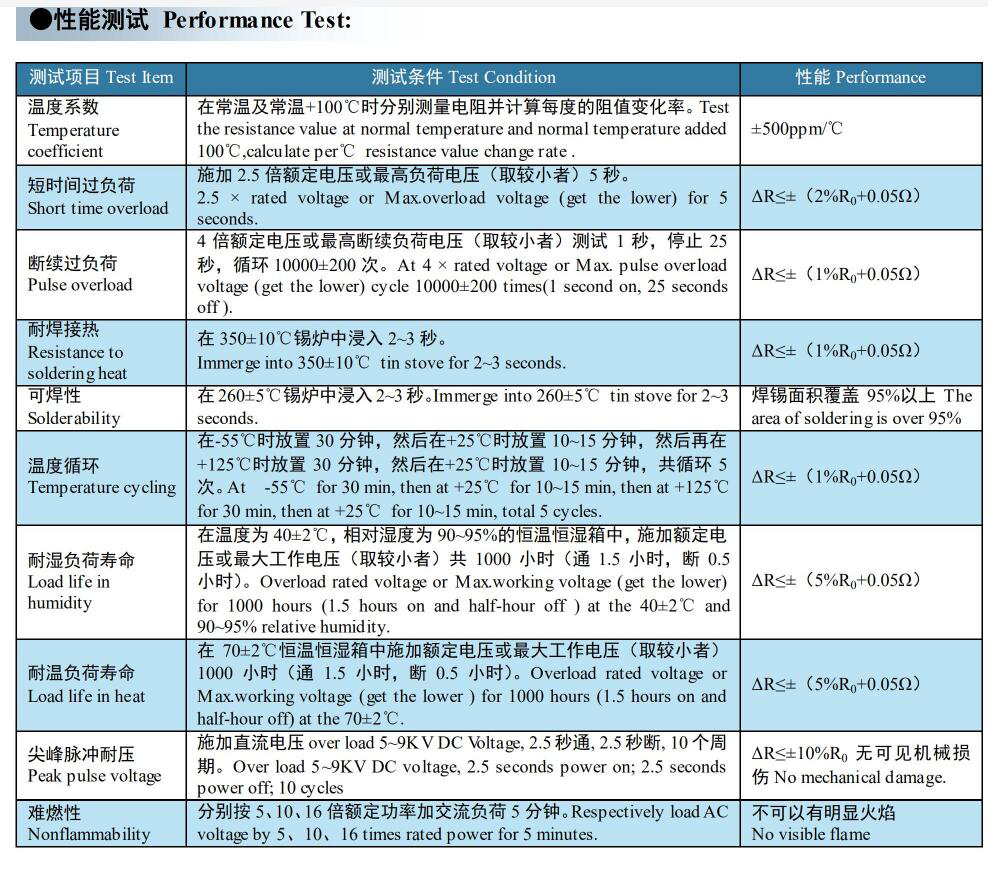

● Specifications & Dimensions
Power （Part No.） | Resistance Range ( Ω） | Dimension ( mm) | |||||
L±1 | H±0.5 | d±0.05 | Max Working Voltage | Max Overload Voltage | Max Pulse Voltage | ||
1/8W FVG018 | 100-4.7KM | 8 | 3.5 | 0.56 | 2KV | 2KV | 2KV |
1/4W FVG014 | 100-10KM | 10 | 5 | 0.56 | 4KV | 4KV | 4KV |
1/2W FVG012 | 100-10KM | 35 | 5 | 0.56 | 10KV | 10KV | 10KV |
1W FVG01B | 100-10KM | 25 | 10 | 0.56 | 15KV | 15KV | 15V |
2W FVG02B | 100-10KM | 38 | 10 | 0.8 | 20KV | 20KV | 20KV |
3W FVG03B | 100-100KM | 60 | 10 | 0.8 | 25KV | 25KV | 25KV |
5W FVG05B | 100-200KM | 80 | 20 | 1.0 | 25KV | 25KV | 25KV |
10W FVG10B | 100-200KM | 97 | 23 | 1.0 | 30KV | 30KV | 30KV |
20W FVG20B | 100-200KM | 100 | 35 | 1.0 | 30KV | 30KV | 30KV |
30W FVG30B | 100-200KM | 100 | 48 | 1.0 | 30KV | 30KV | 30KV |

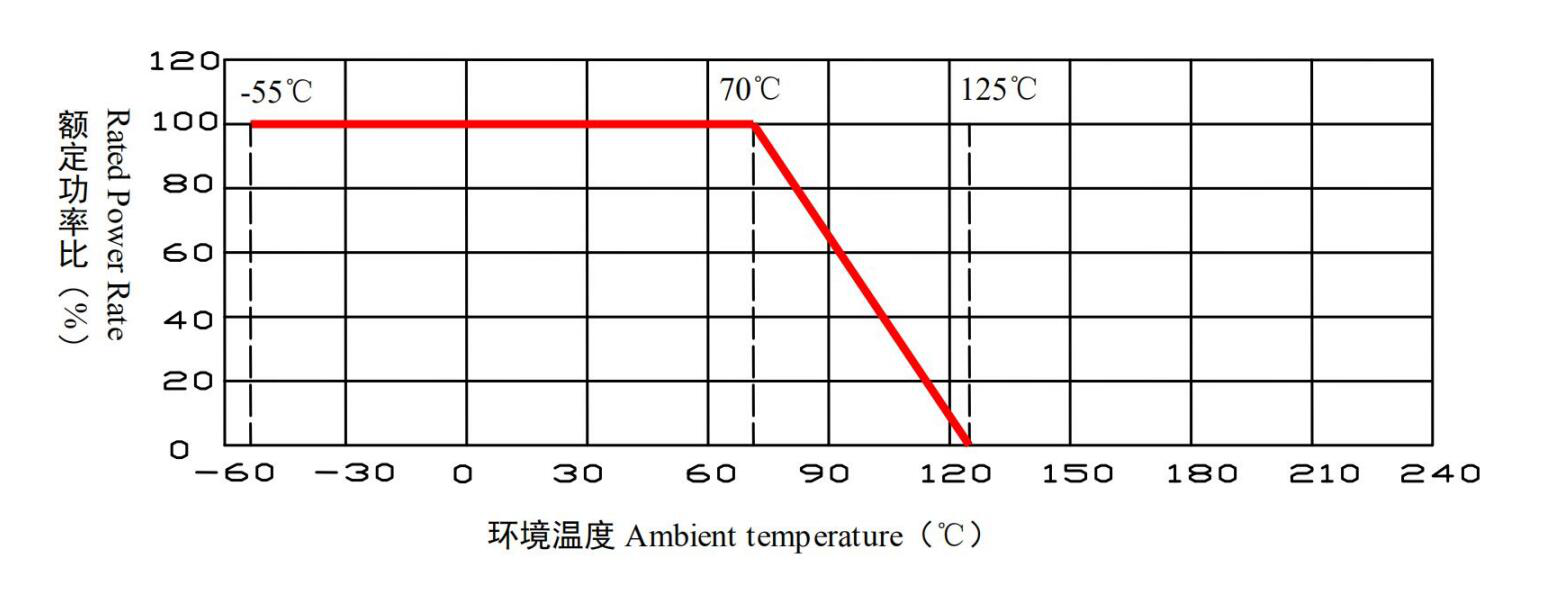

Rated Power Derating Curve
