High Voltage Resistors
R181 Type
● Features
■ Thick filming resulted in high surge -resist & stability
■ Operating ambient temperature ：-55℃~ 125℃
■ High resistance value and working voltage
■ Resistance tolerance： ±5%、±10% , Temperature coefficient 100ppm
■ High frequency performance

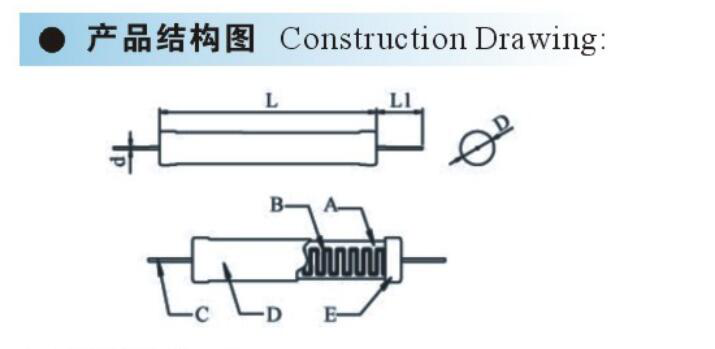

● Specifications & Dimensions
Power （Part No.） | Resistance Range ( Ω） | Dimensions ( mm) | |||||
L( Max) | D(Max) | d±0.05 | L1 ±3 ( Max) | Max Overload Voltage | Max Pulse Voltage | ||
1/2W HVG012 | 1M-100M | 28 | 6 | 0.8 | 30.0 | 8KV | 8KV |
1W HVG01B | 100K-1G | 30 | 9 | 1.0 | 30.0 | 10KV | 10KV |
3W HVG03B | 100K-10G | 50 | 9.0 | 1.0 | 30.0 | 15KV | 15KV |
5W HVG05B | 100K-20G | 70 | 11 | 1.0 | 30.0 | 20KV | 20V |
8W HVG08B | 100K-80G | 100 | 11 | 1.0 | 30.0 | 25KV | 25KV |
10W HVG10B | 100K-100G | 147 | 11 | M4 | 6.0 | 30KV | 30KV |
20W HVG20B | 100K-150G | 120 | 18 | M5 | 10.0 | 30KV | 30KV |
30W HVG30B | 100K-200G | 120 | 20 | M5 | 10.0 | 30KV | 30KV |
50W HVG50B | 100K-300G | 120 | 22 | M6 | 10.0 | 30KV | 30KV |
80W HVG80B | 100K-300G | 135 | 28 | M8 | 10.0 | 30KV | 30KV |
100W HVG100B | 100K-300G | 170 | 28 | M8 | 10.0 | 35KV | 35KV |
200W HVG200B | 100K-300G | 320 | 33 | M10 | 10.0 | 80KV | 80KV |
● Note ： M4 , M5 , M6 , M8 , M10 is the screw type

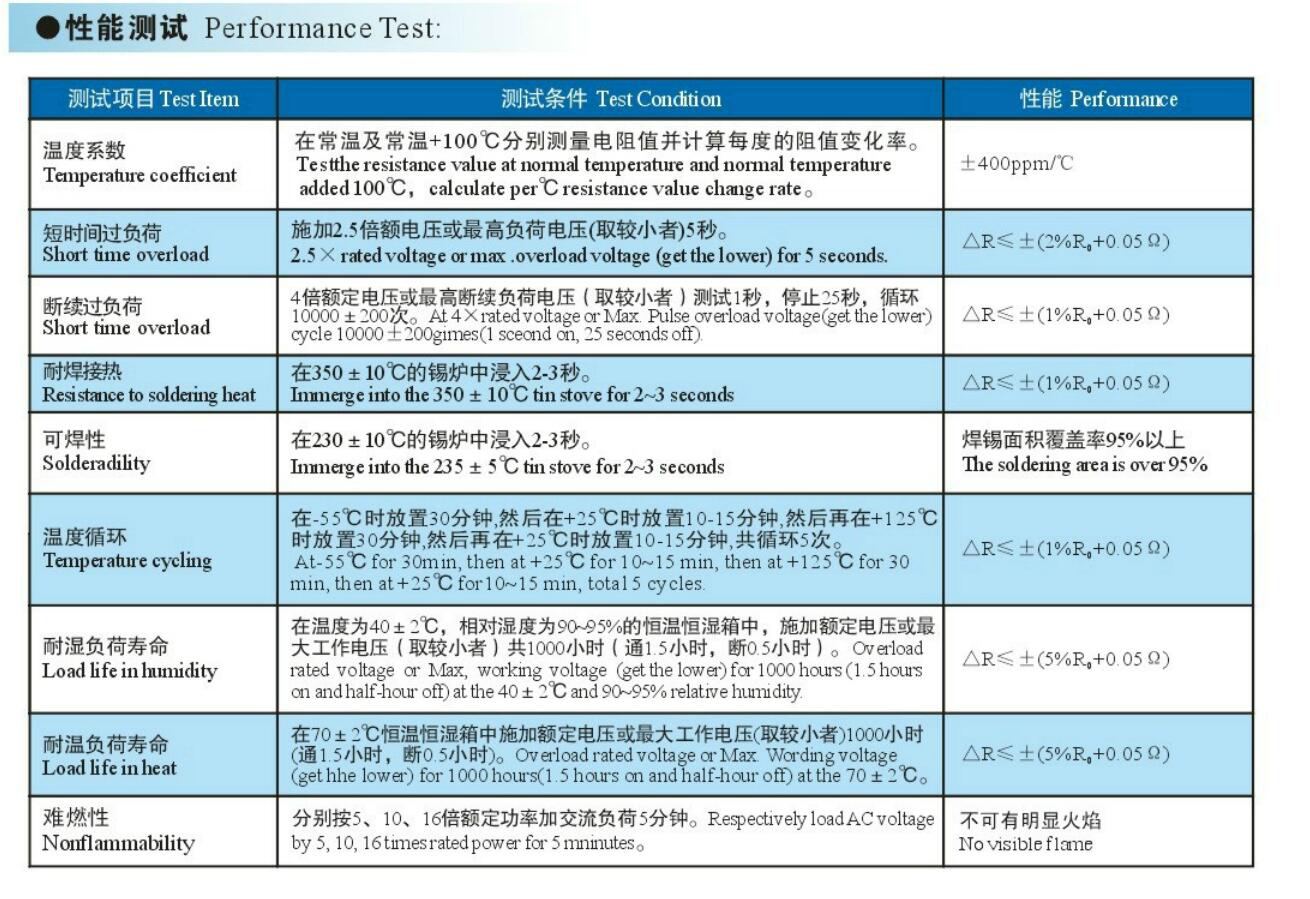

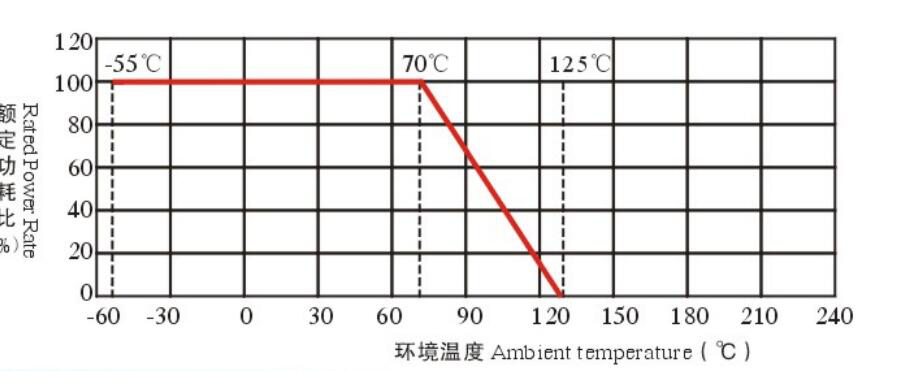

Rated Power Derating Curve
