1:Aluminum crust surface with good performance in heat radiation , suitable for cooling plate installation , can be used in the atrocious environment

2: Small size , high power load .

3: High insulating capacity , encapsulation by non-flame inorganic material , good

Performance in vibration .

4: Multi Connection form will be easily to fix .

5: Widely used in power supply , transducer , Elevator , Arena audio and high requirement Equipment industry

6: Resistance tolerance  :  ±1% ， ±5% .

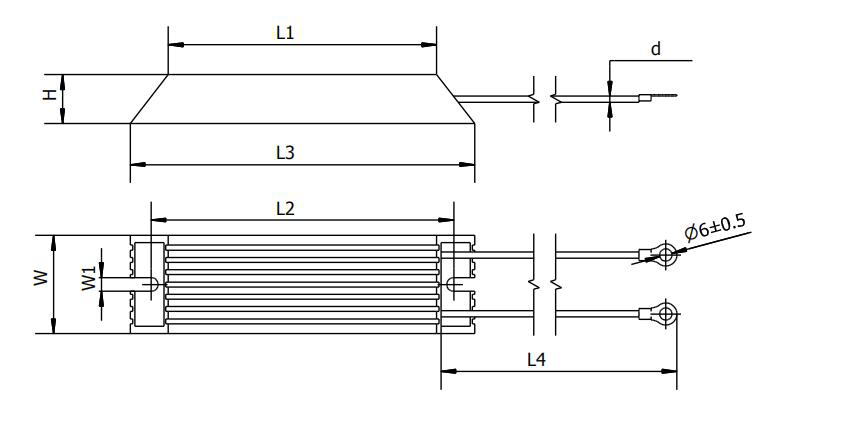

Power	Resistance Range ( Ω）	Part No.	Dimension ( mm)
			L1 ±1	L2±1	L3±1	H±1	W±1	W1±0.5	Max Working Voltage	Max Loading Voltage
40W	0R1~7K	TRX40B	75	90	100	18	30	5.6	300V	300V
50W	0R1~9K	TRX50B	84	98	115	18	30	5.6	400V	400V
80W	0R1~22K	TRX80B	109	123	140	20	40	5.6	500V	500V
100W	0R1~31K	TRX100	134	148	165	20	40	5.6	600V	600V
150W	0R1~40K	TRX150	184	198	215	20	40	5.6	900V	900V
200W	0R1~46K	TRX200	119	147	165	30	60	5.6	1000V	1000V
300W	0R1~72K	TRX300	184	212	230	30	60	5.6	1500V	1500V
400W	0R1~79K	TRX400	219	247	265	30	60	5.6	1600V	1600V
500W	0R1~100K	TRX500	289	317	335	30	60	5.6	1600V	1600V

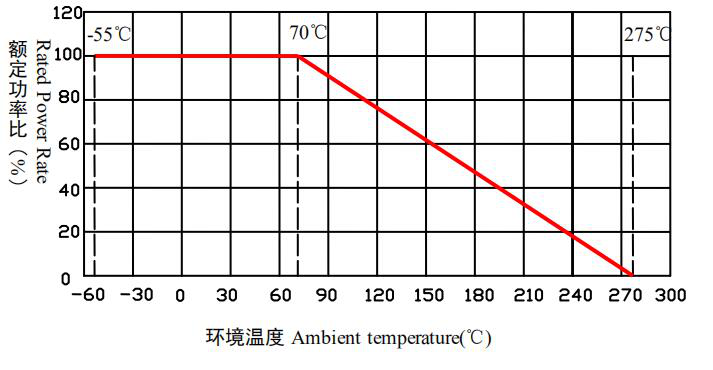

▇ Rated Power Derating Curve

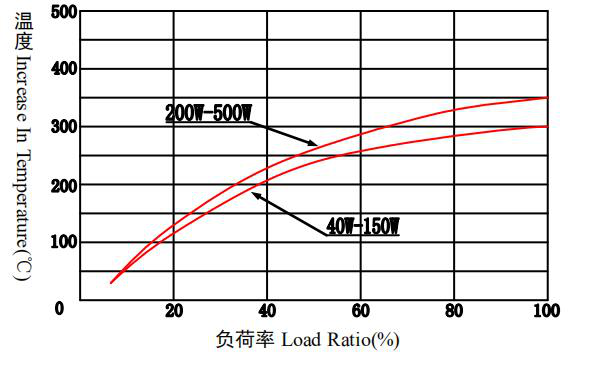

▇ Surface Tempe rature Rise
